High Precision Mixing Two Part Polyurethane Belt Machine for LED Strip Light Dispensing

Product Categories
Guangzhou Zhengqi Technology Co., Ltd.
Contact Now

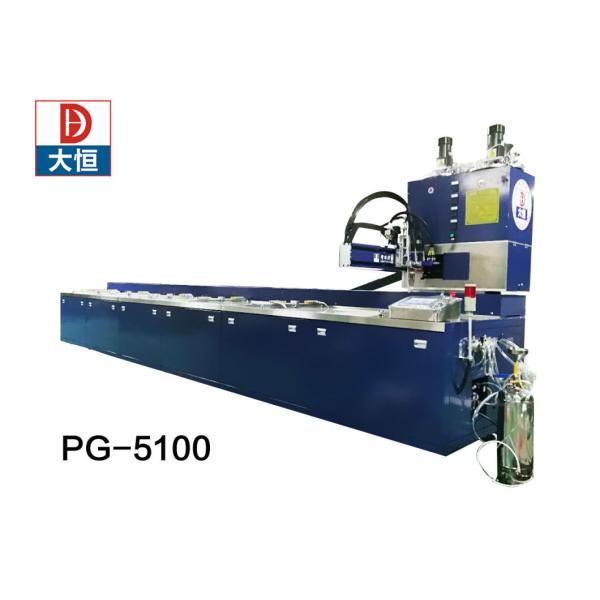

High Precision Mixing Two Part Polyurethane Belt Machine for LED Strip Light Dispensing

Model NO. : PGB-5100

Packaging : Cartons

Xyz Working Area : 480X5000X30mm

Size : L6000xw1200xh1500mm

N.W. : 810kg

Ratio : From 1:1 to 10:1

Stiring Method : Static or Dynamic

Pump : Daheng Patent Plunger Pump

Mixing Precision : +/-1%

out-Gluing Rate : 10-50g/5s

Container Volume : a:25L B:10L

Name : Silicone Materials Glue Potting Machine From China

Transport Package : Carton Box Lined with Foaming PC

Specification : CE

Trademark : Daheng or OEM

Origin : Guangzhou China

HS Code : 8424899990

Supply Ability : 50PCS / Month

Automatic Grade : Automatic

Gluing Mode : Piston / Plunger Pump

Packaging Material : Plastic

Glue Type : Epoxy, Silicone, PU & Other Double Components

Application : Machinery & Hardware

Driven Type : Electric

Customization : Available | Customized Request

Contact Now

Two part polyurethane belt machine Led strip light dispensing machine

1. Features
1). An automatic system of simultaneous metering, mixing and dispensing
2). Glues ratio and out-gluing quantity can be adjusted easily and freely
3). Precise mixing helps to avoid possible glue waste in working
4). Easy to operate and program
5). Easy to disassembly and install
6). The configuration could be changed according to customers' demand
7) It can be installed with 1-8 nozzles to improve productivity
8). Vacuum and automatic cleaning
2. Industrial Application
LED modules, LED bar / banner light, LED wall washer, liner lights, LED display, graphics, electric components, circuit, PCB board and other regions where gluing shooting & injecting is needed.

High Precision Mixing Two Part Polyurethane Belt Machine for LED Strip Light Dispensing


Model & Type PG-1500 Full Auto Gluing Machine Dispenser
Certificate CE, SGS
Dimension 1900x1400x1500mm
N.W. 320kg
XYZ Working Area 1500x1500x80
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 3kw - 5kw
Additional Functions Heating, Vacuum, Self-refilling, Self-cleaning
Application LED modules, LED bar / banner light, LED wall washer, liner lights, LED display, graphics, electric components, circuit, PCB board and other regions where gluing shooting & injecting is needed.

Introduction :
1. Working Area: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Gear pump special for transparent glue.
4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology :
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with artificial feeding mouth that can be added glue appropriately by hand .
7 Tank with silica-dryer which can prevent material especially PU from crystallization .

Pump technology
1. Two cylinder plungerpump /gear pumps are work by durable motors.
2.The biggest flow volume is customable .
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.

Valve technology
1. Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Working area 5100mm×400mm×100 mm
Working speed 250mm/s
Precision +/-0.1mm
Ratio 1 :1 ---10:1
Glue-out speed 1g/s --15g/s
Mixing precision +/-2%
Program memory 20pcs
Glue viscosity 300cps~50000cps
Operation mode Manual / automatic / third party single
Controlling system PLC/ Daheng gear pump
Flow control Digital input
Program teaching programming
Automatic controlling system Touch screen / hand switch
Mixing method Dynamic mixing (including self-cleaning function)
Tanks Stainless tank A(25L) and tank B (10L)
Liquid level sensor (low liquid level / high liquid level and limiting liquid level )
Tank stirring
Constant temperature heating (A tank ;A pump and A pipes)
Glue filter
Power 220V/50Hz/3500W
Input air pressure 0.4MPa-0.7MPa
Dimension 5100mm×400mm ×30mm
Appearance material cold-roll steel plate / Industrial aluminium/stainless / metal plate


Machine structure :
Item Configuration quantity Brand
Main Frame foundation frame--Steel welded structure 1 sets Made in China
Metal plate 1 sets Made in China
Castor 4 sets Made in China

Controlling system		 PLC 1 set Panasonic
Software system 1 set Daheng patent
Industrial human-computer interface touch screen 1 pc MCGS
Metering pump motor / Driver 2 sets Lakeside
Photoelectric proximity switch 8 sets YAMATAKE
Metering pump bearing 4 sets NSK
Pneumatic component(solenoid/pressure regulating valve/Pneumatic duplex) pcs Air tac
Electronic component(relay/cocontactor/power supply/leakage switch) pcs CHNT
Three axis system Synchronous belt 2 sets PMI-GROUP
Motor/driver 2 sets Lakeside
Z axis 1 set Air tac
Glue supplying System Stainless tank A 1 group Made in China
Stainless tank B 1 group Made in China
Pipe and tank heater (adjustable temperatures) 2 pcs Made in China
Temperature control instrument 2 pcs Made in China
AB tank stirring motor 2 pcs DDK
Gear pump 3.6 1 set Daheng
Gear pump 1.2 1 set Daheng
Dynamic double liquid valve 1 set Daheng patent
High quality tube 2 pcs Made in China
Self-cleaning 1 set Made in China

High Precision Mixing Two Part Polyurethane Belt Machine for LED Strip Light DispensingHigh Precision Mixing Two Part Polyurethane Belt Machine for LED Strip Light Dispensing
