Two Component Glue Potting Machine Electric For CNC Liquid Glue Application

Name: Two Component Glue Potting Machine Electric For CNC Liquid Glue Application
Brand: Daheng
Price: 382.00 USD

Wholesale Two Component Glue Potting Machine Electric For CNC Liquid Glue Application from china suppliers

Place of Origin : Guangdong, China

Brand Name : Daheng

Packaging Details : Wooden carton
Automatic vacuum filling machine epoxy resin and silicone AB two components glue machine

Supply Ability : 1000 Piece/Pieces per Year

Price : $382.00/sets >=1 sets

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motor, Pump

Condition : New

Packaging Type : Cartons

Packaging Material : Plastic

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 230V

Weight : 3 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

name : Electric AB compound Dispensing system

function : AB compound metering and mixing

Precision : ±2%

Tank Capacity : 10L,25L,40L,60L,customized

Glue type : two component

heating : available

self-cleaning : available

mixing ratio : 100:100-100:5

Working area : 700x700x100mm

Contact Now

Product Description

CNC liquid glue application machine glue potting machine mixer machine dispenser

I Machine demand description

Electronics are increasingly present in our lives,these technologies all use a wide array
of components – sensors, actuators, central processing units (CPUs), printed circuit boards (PCB), etc. – that need to be
protected against environmental factors such as dust and moisture, as well as fluids and heat and fire exposure.
Our 2 component application equipment is the the good machine for potting and encapsulating vary parts and products, which apply different production processes required metering , mixing , dosing , dispensing and potting with high accuracy and high efficiency .

II Metering working Principle
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .

III Features and Benefits:
1. The glue potting system are for AB component materials for metering, mixing and potting .
2. Accurated metering and evenly mixing helps to avoid possible waste of glue.
3. Dispensing size and positioning keep consistently and fastly.
4. Good universality makes our machine suitable for applications of LED, electric and others glue potting and dispensing needed.
5. Easy to program and operate.
6.Fast metering & mixing and running speed keep potting with high efficiency.
7. Tally function, non-standard mode, tank level alert, filter mode, liquid display device, preventing backflow device and other functional device.

IV Main Function:
1.Automatically metering and mixing
2. Automatic dispensing
3.Auto alarm for lack of material or full of material
4.Potting ratio and quantity adjustable
5.Auto-cleaning/Self-cleaning
6.Glue tank Vacuum Degas
7.Tanks ,metering pumps,glue hoses with heater to keep temperature adjustable.

Specification

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	700700100mm
Displacement speed	200mm/s(speed)
Out-glue speed	1-12g/s
Accuracy	±2%(output volume)±2%(mixing)
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	25L stainless tank(optional)
B tank	10L stainless tank(optional)
Others	AB tank ,A pump,AB pipeline heating function

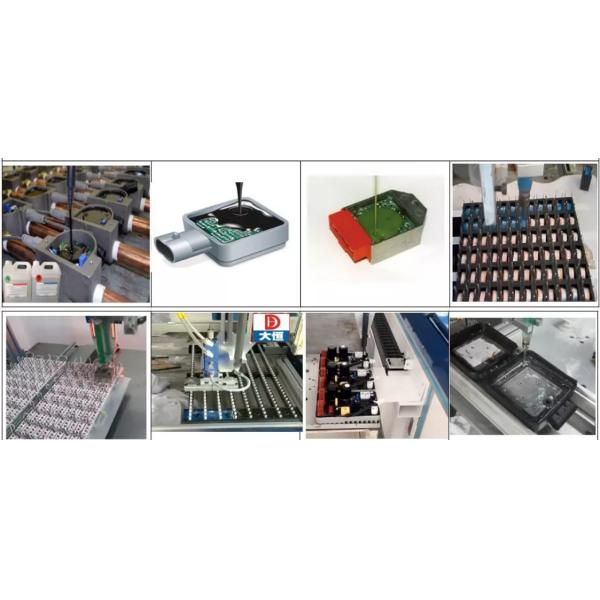

Application :

Auto parts , Reverse Sensor, Electronic Circuit Board, Electronic Ballast,air Filters, LED products ,Electronic
components,Crafts,Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box,Power module,Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter and so on .

Suitable materials :

Two component silicones, polyurethane,epoxies,two part compound,AB compound,Bi-compound
other potting dispensing adhesive .

About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q:Do you offer oversea service? A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q:How dose your factory do regarding quality control? A:We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q:What are your payment terms? A:Normally, 30% advance by T/T and balance paid off before delivery.
Q:Are you a factory or trading company ? A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
